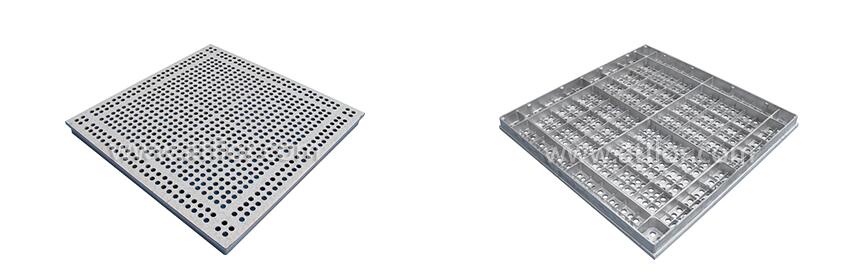

20% Ventilation Aluminium Air-Flow Raised Access Floor

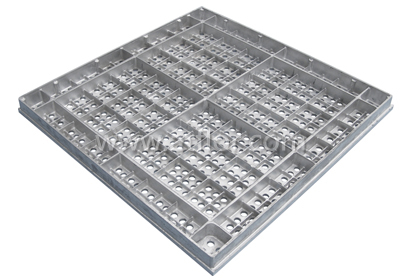

Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal,stringer are pressured forming with steel or aluminum, lead screw could adjust height.

Product Type : 20% Ventilation

Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal, stringer are pressured forming with steel or aluminum, lead screw could adjust height.

1.Prevent static validly, fireproof, dustproof;
2.High mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.Various ventilation rate, satisfies different environmental requirements on purge;
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.


Technicial Specification

International Size(mm) Fire Performance Concentrated load Impact load (N) Ultimated load (N) Uniform  Load (N/m2) Rolling load(N)
LB N KG 10 times 100000  times
FS1000 600x600 A ≥1000 ≥4450 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600 A ≥1500 ≥6660 ≥680 ≥1005 ≥19980 ≥34500 6675 5340

Size :600*600mm

Thickness: 40/45/50mm

Material : all aluminium
