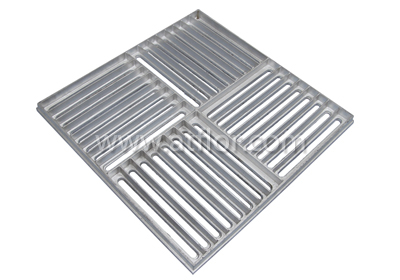

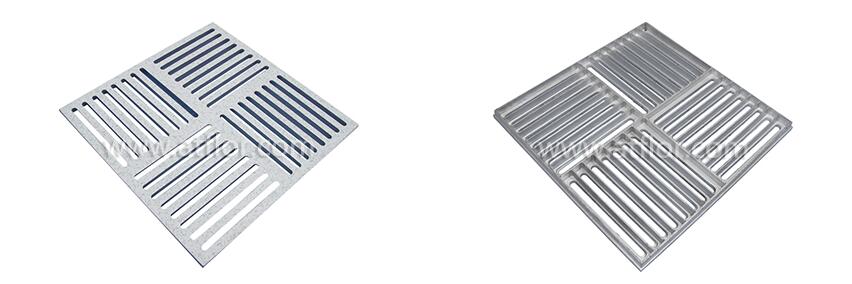

35% Ventilation Aluminium Air-Flow Raised Access Floor - Buy Raised Floor Product on ATFLOR: Your first time choice, our life time service.

Prefer aluminum as base material, die casting by large oil press. Imported strong glue HPL or PVC. Pedestal, stringer are pressured forming with steel or aluminum, lead screw could adjust height.

1.Prevent static validly; fireproof, dustproof;
2.High mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.Various ventilation rate, satisfies different environmental requirements on purge;
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Technicial Specification

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	10 times	100000 times
FS1000	600x600	A	≥1000	≥4450	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600	A	≥1500	≥6660	≥680	≥1005	≥19980	≥34500	6675	5340

Size :600*600mm

Thickness: 40/45/50mm

Material : all aluminium
