Aluminium Raised Access Floor - Buy Raised Floor Product on ATFLOR: Your first time choice, our life time service.

1.The best base material of the raised floor, 100% recycled

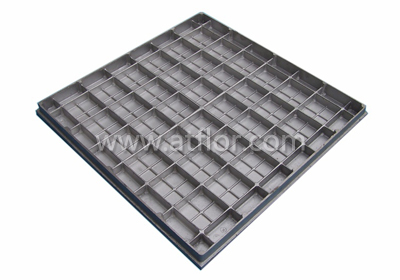

2.Full aluminium, die casing, top with HPL/ PVC, excellent antistatic
3.Light and high loading capacity, high dimensional precision

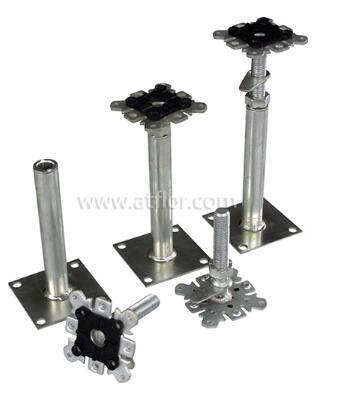

4.Adjustable height for pedestal, assembly agility, large wire, good exchangeability
5.Convenient removing, long performance life

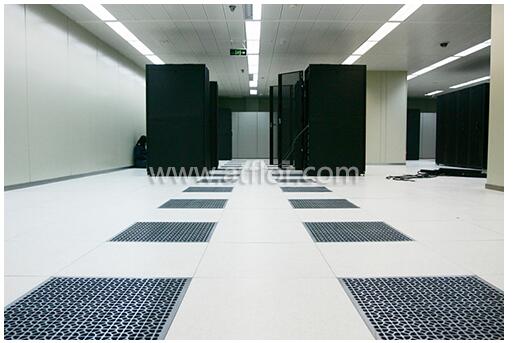

Wide range All manner of computer room, network service room, monitor control center, electronic workshop, clean room, dustlessness chamber etc, and occasions which require on antistatic and air conditioning.

Technicial Specification

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	10 times	100000 times
FS1000	600x600x40	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x40	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x40	A	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x40	A	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	8000

* Thickness could be 40mm and 50mm
