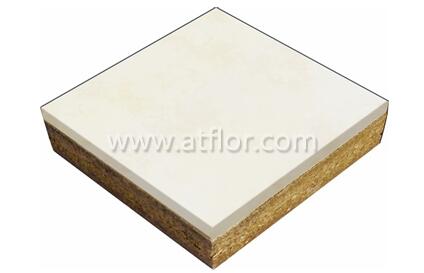

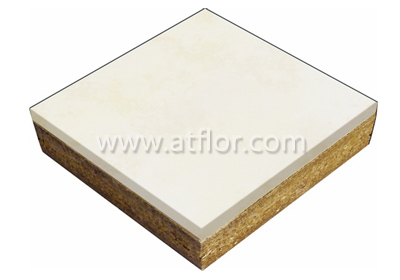

Ceramic Coated Wood Core Raised Access Floor

1.High density particle board, PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof.
3.Adjustable height for pedestal, assembly agility, large wire.
4.Outlet mating. Elegant appearance for paving wildly brand top tiles.
5.light weight, high loading capacity, excellent raised flooring in 21th

Product Type : FS662-FS1500
Availability:

1.High density particle board, PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof.
3.Adjustable height for pedestal, assembly agility, large wire.
4.Outlet mating. Elegant appearance for paving wildly brand top tiles.
5.light weight, high loading capacity, excellent raised flooring in 21th

1.Panel- 30/38mm thickness particle board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles could be ceramic or granite tiles as you like.
2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system

Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office

Type Technology parameter

nternational Size(mm) Fire Performance Concentrated load Impact load (N) Ultimated load (N) Uniform Load (N/m2) Rolling load(N)
LB N KG 10 times 100000 times
FS662 600x600x40 A ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥12500 2946 2356
FS800 600x600x40 A ≥800 ≥3560 ≥363 ≥536 ≥10680 ≥16100 3560 2670
FS1000 600x600x40 A ≥1000 ≥4450 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x40 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x40 A ≥1500 ≥6660 ≥680 ≥1005 ≥19980 ≥34500 6675 5340


Standard Pedestal SPEC

FFH(mm) tub diameter(mm) adjustment +(mm) adjustment –(mm)
≦600 ф25 20 10
700~900 ф32 20 10
1000~1500 ф42 20 10

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
