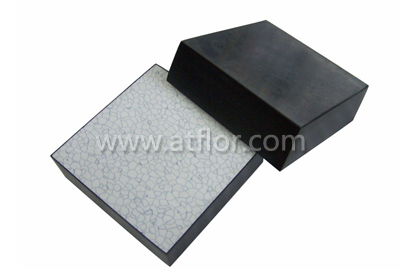

PVC Coated Wood Core Raised Access Floor

1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.light weight, high loading capacity, excellent raised flooring in 21th

Product Type : FS440~FS1000

1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.light weight, high loading capacity, excellent raised flooring in 21th

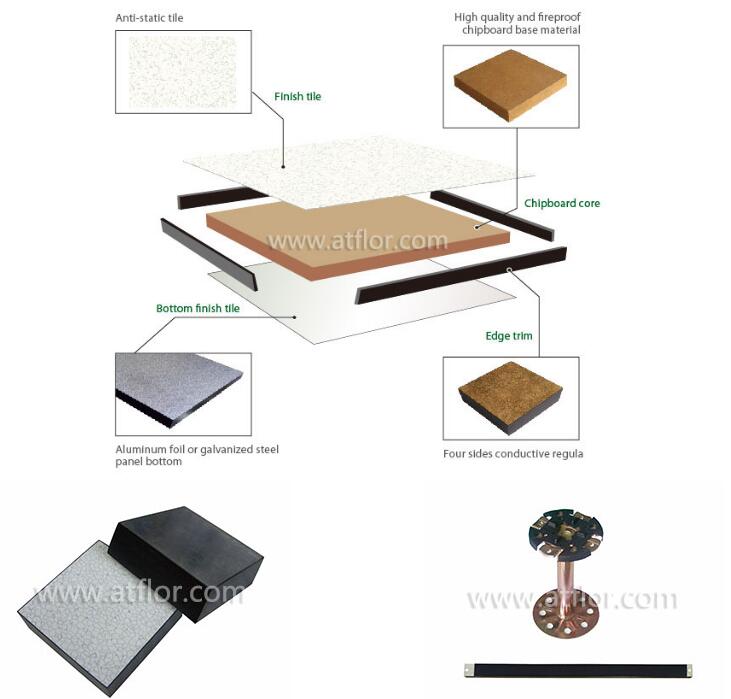

1.Panel- 30/38mm thickness particle board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles is PVC.
2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system.

Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office.

Type Technology parameter

InternationalSize(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)
LBNKG10 times

100000

times

FS440600x600x32B1≥440≥1960≥200≥295≥5880≥972019581566
FS662600x600x40B1
≥662≥2950≥301≥445≥8850≥1250029462356
FS800600x600x40B1
≥800≥3560≥363≥536≥10680≥1610035602670
FS1000600x600x40B1
≥1000
≥4450
≥450
≥670
≥13350
≥23000
4450

3560


Standard Pedestal SPEC

FFH(mm)

tub diameter(mm)

adjustment +(mm)

adjustment -(mm)

≦600

ф25

25

25

700~900

ф32

25

25

1000~1500

ф42

25

25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
