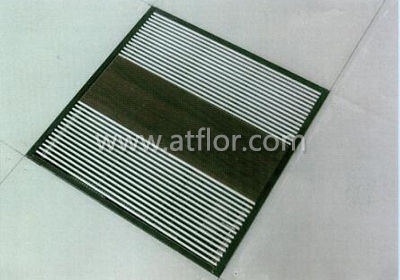

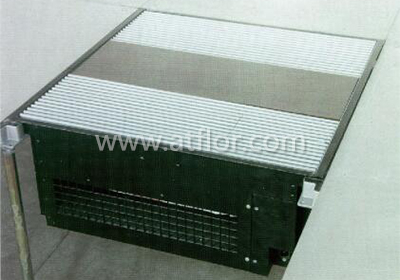

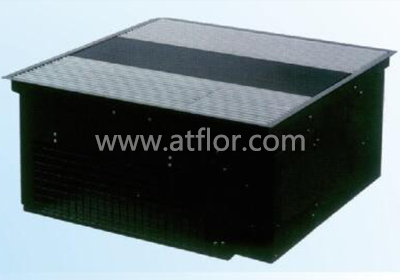

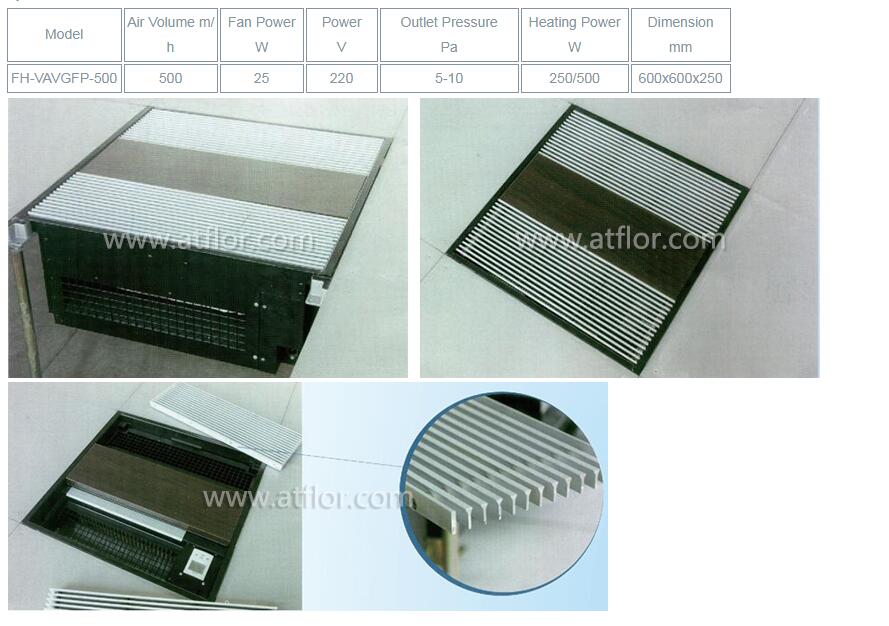

FH-VAV-GFP ground series fans terminal is a set of removable underfloor air supply device. The outlet and secondary air return consist of two grills with inclination of 0°, 15° or 30°.
The first air is supplied via underfloor air supply system, pressure independent control. The fan runs in fixed air volume to induce some inner secondary airflow .
Characteristic
When the inner temperature goes higher, the controller will release the signal to increase the first air volume.
When the first air increases , the secondary air will decrease accordingly. And the fan will run in fixed air volume.
When inner temperature exceeds the set point, the first air will keep at the max volume.
Application
Feature description
1.FH-VAV-GFP ground series fans terminal is a set of removable underfloor air supply device. The outlet and secondary air return consist of two grills with inclination of 0°, 15° or 30°.
2.The first air is supplied via underfloor air supply system, pressure independent control. The fan runs in fixed air volume to induce some inner secondary airflow .
3.Using High precision flow sensor with FH-001Patent, it can increase the flow gain coefficient to 1.2-1.5 times and accurately measure the air speed of 1 m/s or above.
4.Using centrifugal machine with low noise, it has 3 speed adjustments.
5.5OOW and 1000W type heaters are available for options.
6.With DOC controller, it can be connected with BA system via standard Lonworks, BACnet or other communication protocols.
7.There are scale, LED and digital display panels for users' options.
8.Basic technical assurance :
1 ) The air speed in distance of 0.3m from the air outlet doesn't exceed O.5m/s.
2 ) The inner temperature gradient doesn't exceed 1°C/m.
3 ) The inner noise level is controlled under dB(A)40.
4 ) Ensure to meet new air requirement through setting the minimal air volume.
Controlling Scheme Decription
1.Ground series fan powered terminal is connected with the central air handling unit (AHU). We suggest to interlock the terminal with AHU directly through an air flow switch And the switch can detect the pressure of the first air inlet.
2.When the inner temperature goes higher, the controller will release the signal to increase the first air volume.
When the first air increases , the secondary air will decrease accordingly. And the fan will run in fixed air volume.
When inner temperature exceeds the set point, the first air will keep at the max volume.
3.When inner temperature drops, the controller will control to decrease the first air volume.
4.When the inner temperature reaches the set point and the first air reaches its minimum, the fan will begin for the secondary air supply.
5.When it decreases constantly in inner temperature, it can start the heating coil in grading.
Options
FAQ
Where and why would you use a raised floor?
In a gymnasium, they would want a raised floor to increase the bounce for basketball and vollyball games.In a dance hall a raised floor makes the dancing more lively and the dancers don't tire as easily.In housing the entire house is raised off the ground, on a foundation, in order to keep moisture out, and account for settling of the ground. I asked a home builder whyCalifornia(and increasingly other states)require a concrete slab to be raised off the ground, and he told me it was to keep drafts from coming into the house, and provide the strength necessary to hold up the walls and roof.
Access floor systems offer
Maximum flexibility; maintenance, installation and conversion projects can be executed quickly,
Floor can be walked on immediately,
Pre-manufactured components parts for dry assembly,
Easy access to all areas of the communication and in-house technique. Non-destructive, without noise, dust and interference of the workflow,
Optimum amount of spare room for future modifications,
Optimum space for large dimensioned air conditioning units, extinguishing systems, and electrical distributors.
The important criteria for choosing an access floor system are the: load-bearing capacity, fire protection, electrostatic behavior and sound absorption.
Load-Bearing capacity
The expected point load determines the requirements for the load-bearing capacity. The nominal point load of a panel is the decisive value for the valuation of the load-bearing capacity.
Electrostatics
Electrostatics loads are generated through friction. Those are not only unpleasant for people but can also affect the function of many electronic devices. The right choice of floor covering in connection with the access floor system provides for the discharge of the loads over the grounded access floor construction.
What types of Floor Panels are available?
Hollow steel, Cementitious filled steel, Concrete filled steel and wood-core (particle board), Calcium sulphate, aluminum systems are available.
What type of system should I use in a Computer Room?
That would depend on the loading being imposed on the floor and the amount of deflection at the design load your project may require. The Industry standard has always been to specify a concentrated load rating at a maximum deflection of .080". However, for the greatest performance a concrete filled steel system in a rigid grid understructure should be specified. This offers optimum loading at .100" deflection with excellent Rolling and Impact loads. Today most users have switched to the concrete filled steel panel due to its increased performance. See Performance Charts.
What finishes are available for use in a Computer Room?
HPL (high pressure laminate) is the standard used in most computer rooms. Some projects require a conductive vinyl or conductive HPL.
What product should be used in a general office application needing a raised floor for Wire Management?
For an office application an Encased calcium sulphate raised floor with magnetic carpet is best.It’s also a leading product ofXL.
What type of system is best used in a Clean Room application?
An all aluminum system is best used in a clean room application. Grates or perforated aluminum panels are used due to the requirement for Laminar Air Floors.
What is the lowest height I can install for access flooring?
35mm is the lowest finished floor height. However, since most concrete slabs aren't perfectly level, a minimum of 50mm is recommended.
Are Computer Floors only used in certain types of projects?
Originally they were only installed in computer rooms. However, in the past 15 years they have evolved into the general office area and are now being designed into a project throughout the facility. Office buildings, schools, hospitals, Internet facilities and libraries are a few of the applications utilizing access flooring.
