Heterogeneous Commercial PVC/Vinyl Sheet (foam Backing)

ATFLOR adapts the most popular patterns of the international design. Elegant and quiet color styles are applicable to any occasion.
ATFLOR with high elastic foam layer structure makes our feet feel comfortable, which is noise isolation. What’s more, it offers the perfect buffer effect.

Compact sheet, with foam backing
Dimension: 2.2/2.5/3.0mm(thickness)*2.0m(width)*20m(length)

ATFLOR adapts the most popular patterns of the international design. Elegant and quiet color styles are applicable to any occasion.
ATFLOR with high elastic foam layer structure makes our feet feel comfortable, which is noise isolation. What’s more, it offers the perfect buffer effect

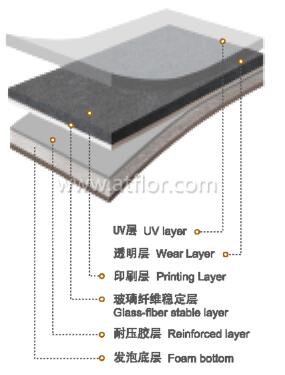

Structure

Technical Data Test Method Equal Test Results
Total Thickness GB/T11982.1-2015 EN428 2.2/2.5/3.0mm
Wear Layer Thickness GB/T11982.1-2015 EN429 0.3/0.5/0.7mm
Total Weight GB/T11982.1-2015 EN430 2200~2930g/m2
Roll Width GB/T11982.1-2015 EN426 2m
Roll Length GB/T11982.1-2015 EN426 20m
Abrasion Group GB/T11982.1-2015 EN660-2 T
Residual indentation GB/T11982.1-2015 EN433 0.11/0.12/0.13mm
Colour Fastness GB/T11982.1-2015 EN ISO 105-B02 ≥6 Grade
Anti-chemical Performance GB/T11982.1-2015 EN423 Good
Dimension Stability GB/T11982.1-2015 EN434 ≤0.13%
Anti-slip Performance GB/T11982.1-2015 Fd:0.73
Fw:0.63
Roller Wear GB/T11982.1-2015 EN425 >25000 turns
Fire-proof Performance GB8624-2012 EN ISO 13501-1 B1(B-S1,t0) Grade
Limit Of Harmful Substances GB18586-2001
Qualified

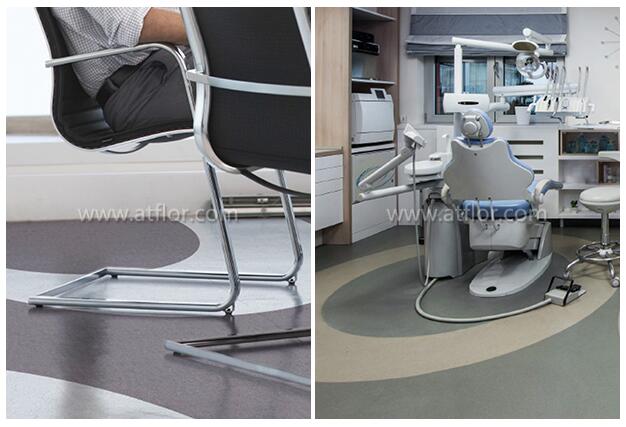

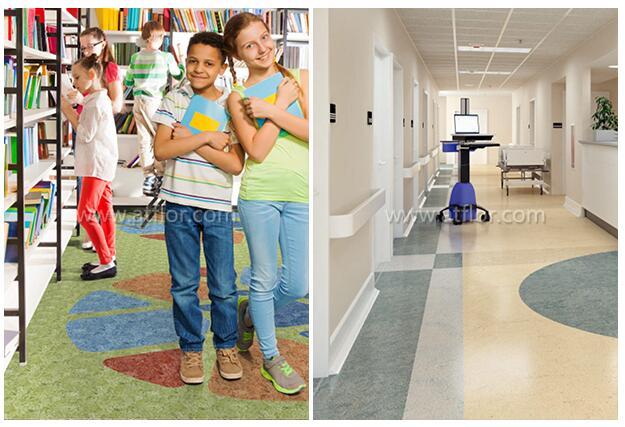

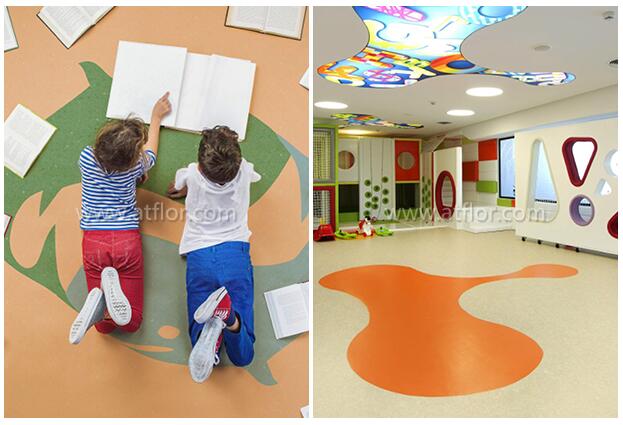

Application

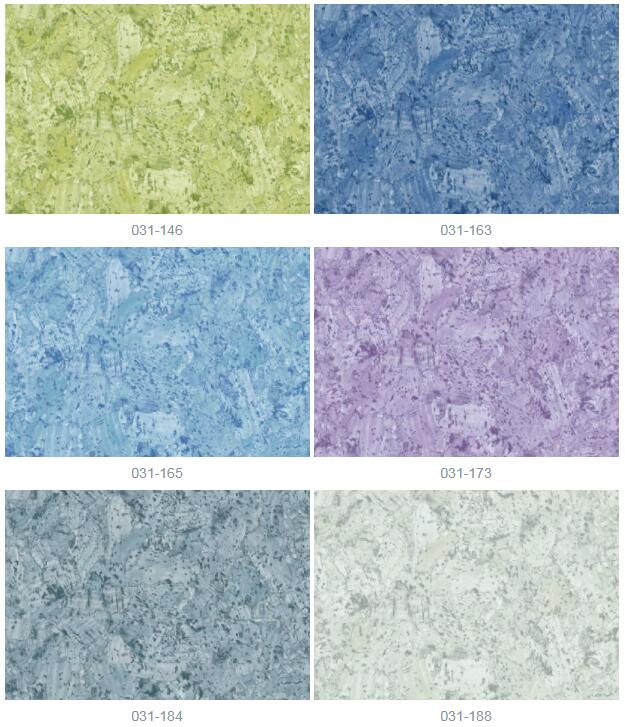

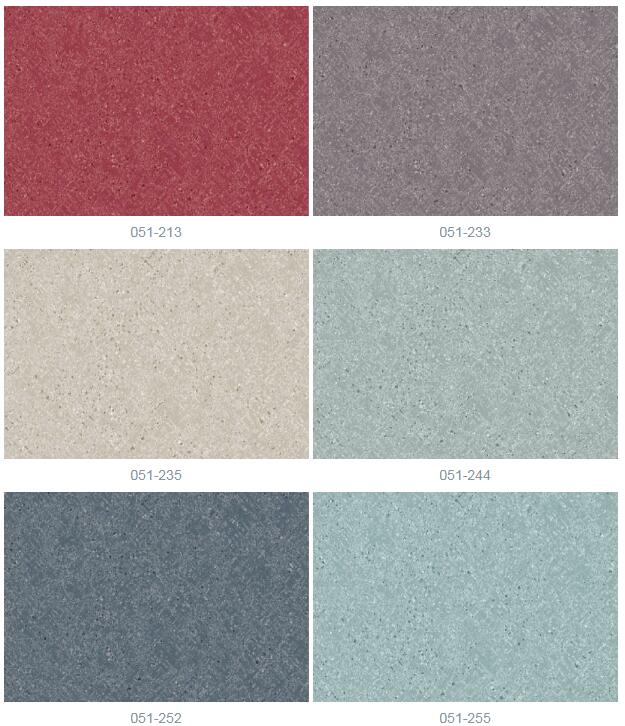

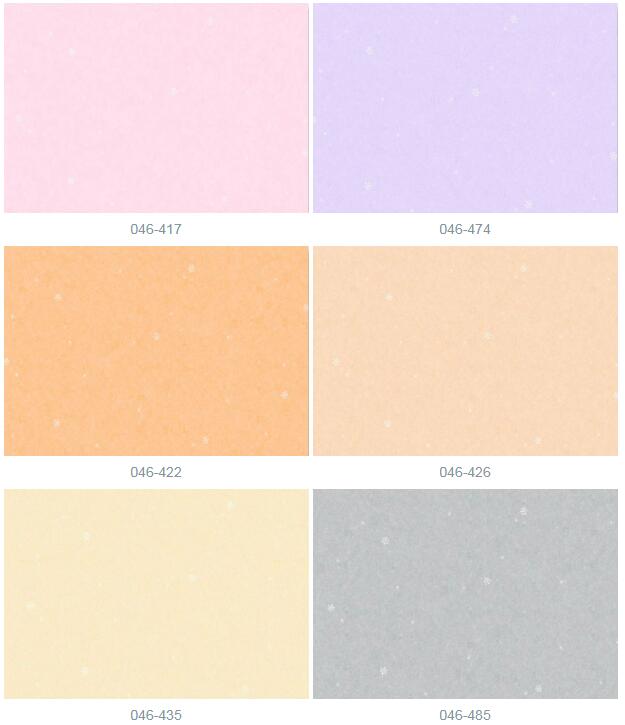

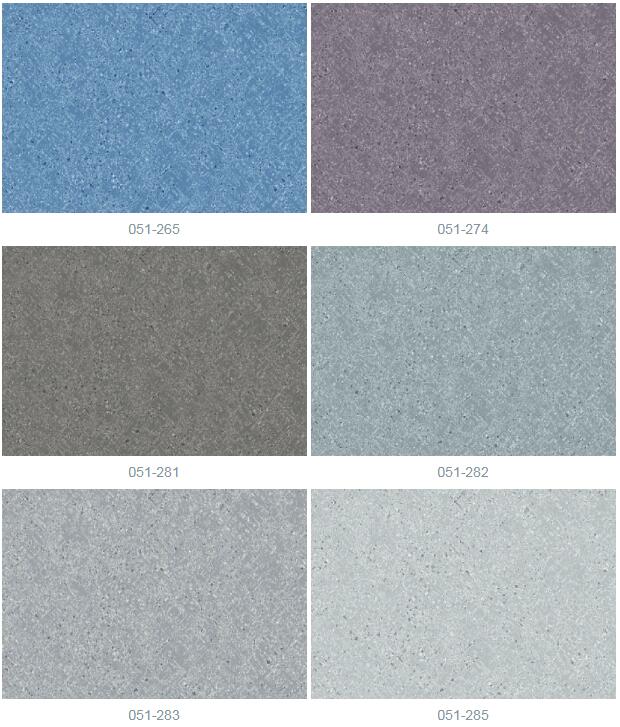

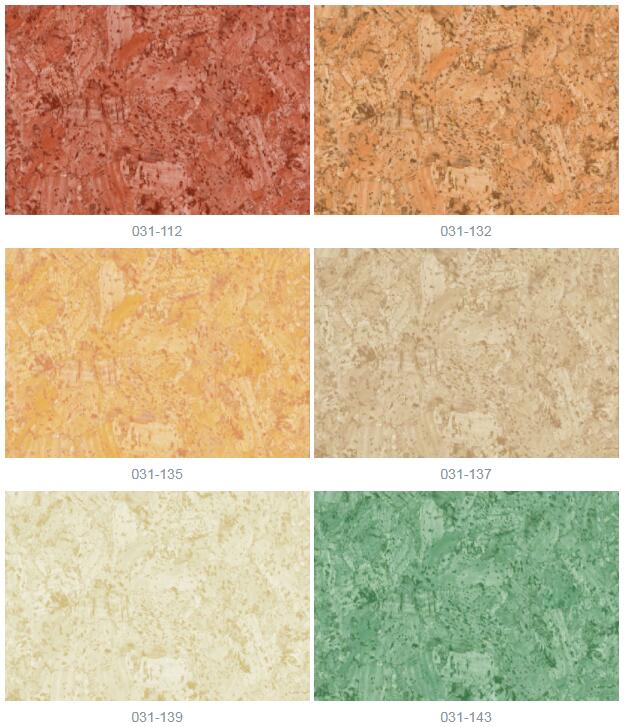

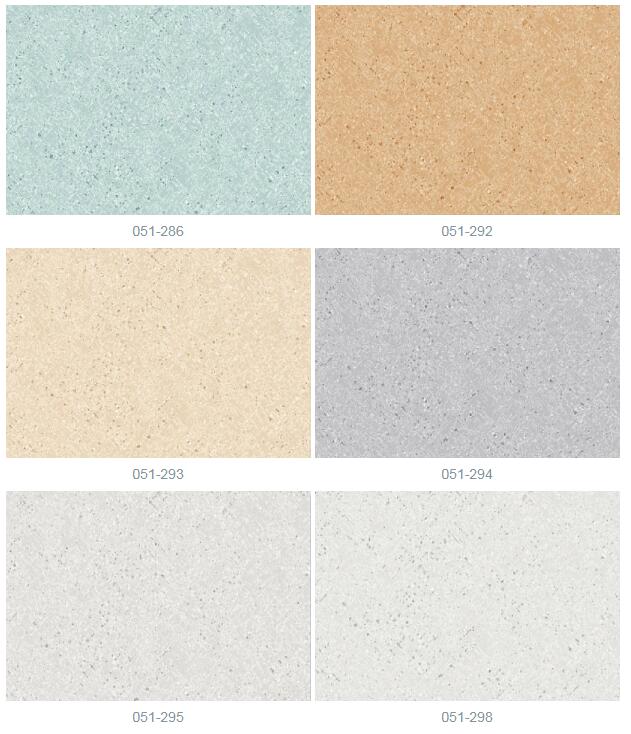

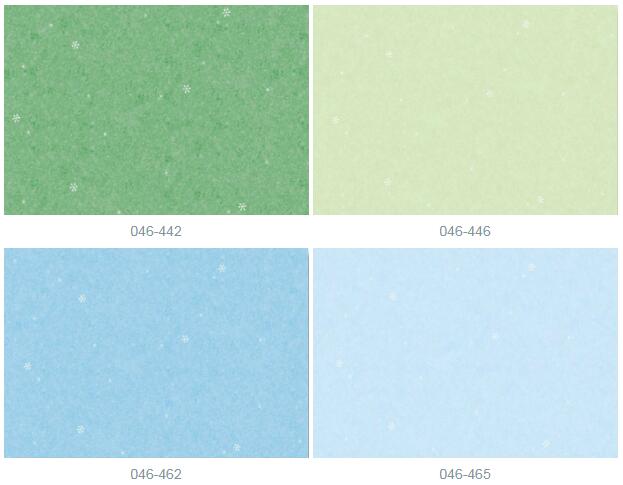

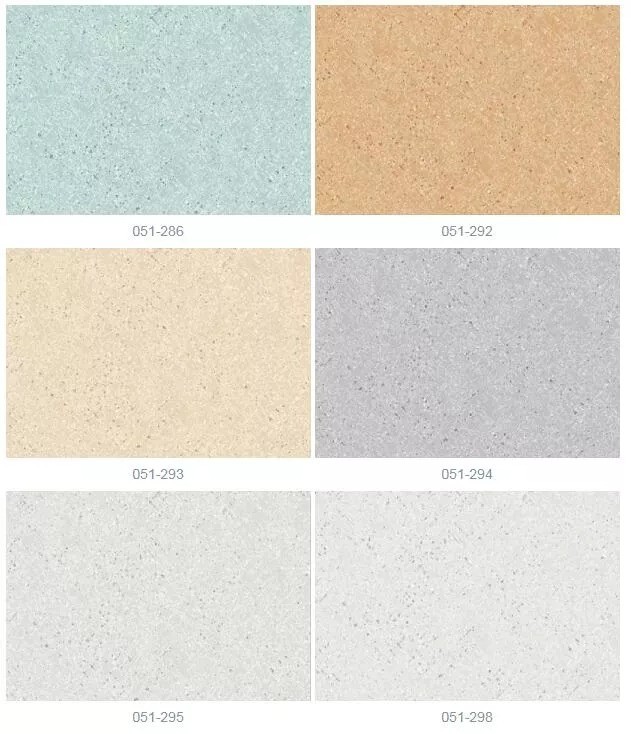

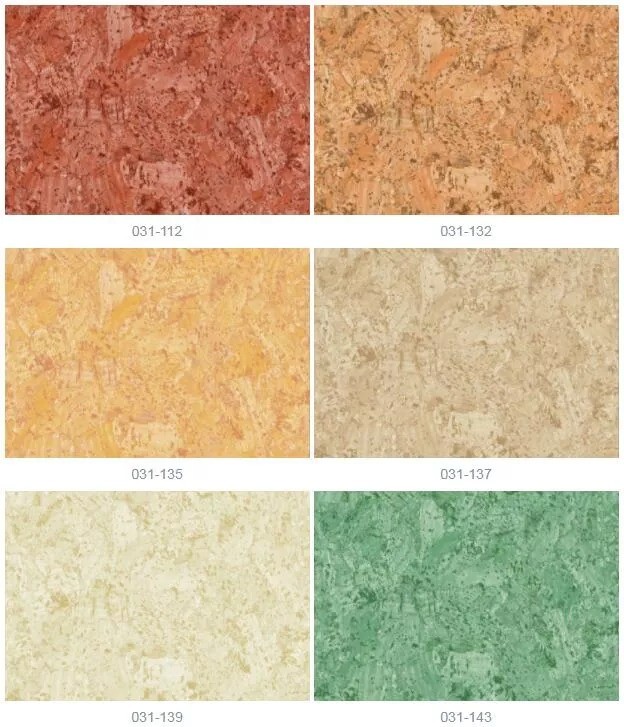

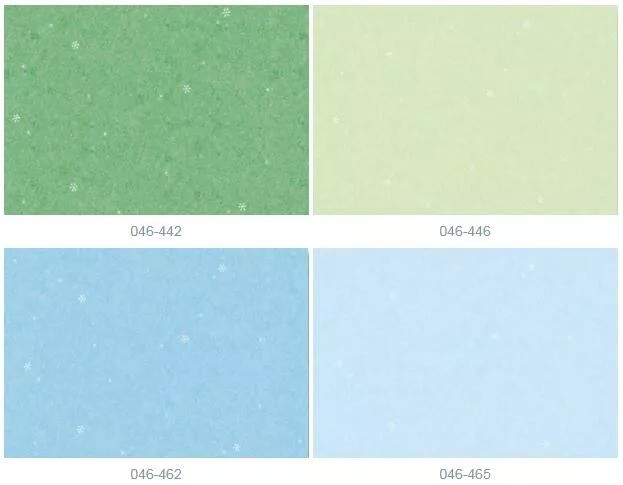

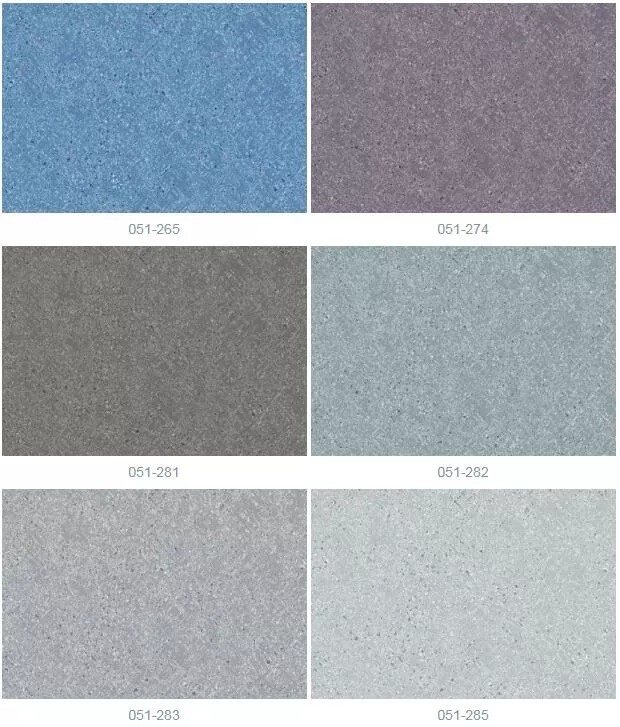

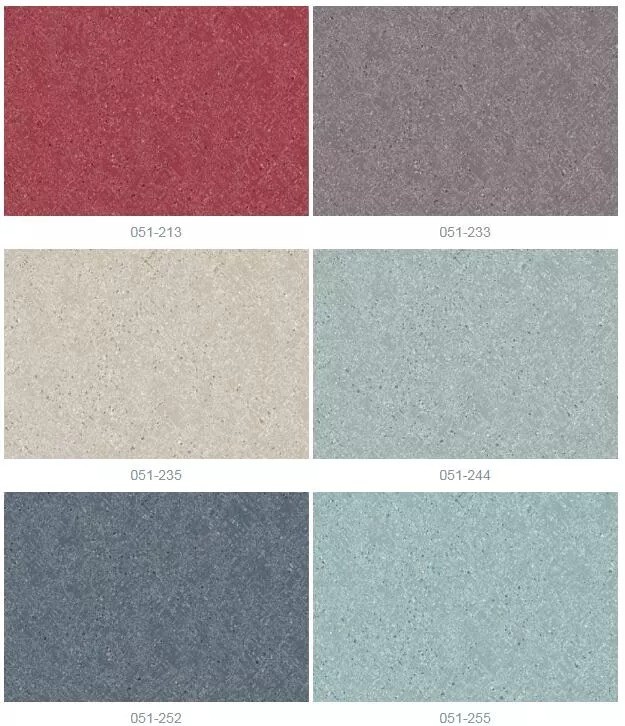

Color reference

1. NC Series

Specification: 2.2mm(T)*2M*20M, Wear layer: 0.5mm

Specification: 3.0mm(T)*2M*20M, Wear layer: 0.7mm

2. EX Series

Specification: 2.5mm(T)*2M*20M

Wear layer: 0.3mm

3.JD Series

Specification: 2.5mm(T)*2M*20M, Wear layer: 0.3mm

Specification: 3.0mm(T)*2M*20M, Wear layer: 0.5mm
