Marble Steel Raised Access Floor - Buy Raised Access Floor, Marble Steel Raised Access Floor Product on ATFLOR: Your first time choice, our life time service.

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability
6. Panel size 600*600 and 24’*24’ available

All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning

5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings’ flooring reform

Technical Data

International	Size(mm)	Concentrated load			Impact load (N)	Ultimate load (N)	Uniform load (N/M2)	Rolling load(N)
		LB	N	KG				10 times	10000 times
		LB	N	KG				10 times	10000 times
FS800	600x600x35	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600x35	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600x35	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450
FS1500	600x600x35	≥1500	≥6675	≥670	≥1005	≥19892	≥34500	6675	5340
FS2000	600x600x35	≥2000	≥8900	≥906	≥1340	≥26700	≥46000	8900	7120

*Fireprof Class A

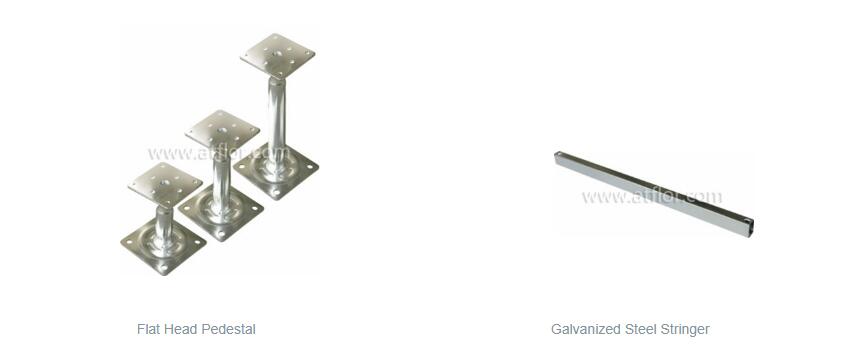

Standard Pedestal and Stringer Specification

FFH (mm)	Tube Diameter (mm)	Adjustment ± (mm)
≦600	ф25	25
700~900	ф32	25
1000~1500	ф45	25

Other height could be customized.

Standard Stringer SPEC: 21x32x570mm

Marble Options
