Snap-On Stringer Raised Access Floor System

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility,

Product Type : FS662~FS2000

1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability
6. Panel size 600*600 and 24’*24’ available

1.panel-Cementitious infill welded die casing steel sheel, wildly accept many kind of top tiles such as HPL, PVC, ceramic, granite, marble tiles or other tiles as you like
2.pedestal-cross top with steel structure ,height could be 80mm--1500mm

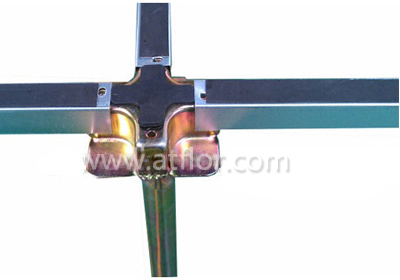

3.stringer-"U" type steel stringer, with snap on cross top pedestal stucture, and a hook on the head easy connect and installation.

Wide range of the application such as computer room,data center, office building or hotel and so on.

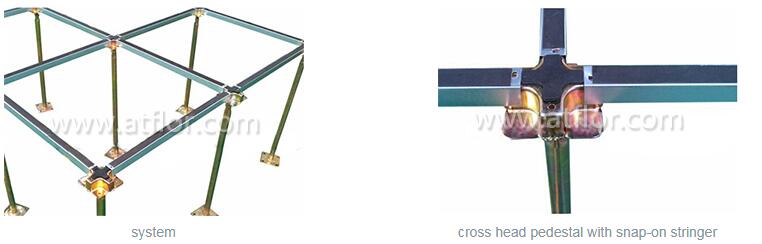

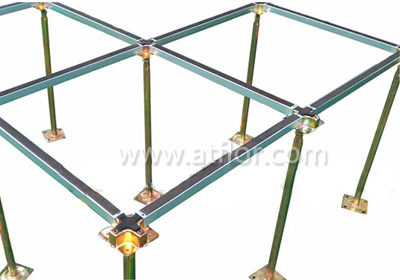

Structure

Technical Data

International Size(mm) Concentrated load Impact load (N)  Ultimate load (N) Uniform load (N/M2)  Rolling load(N)
LB N KG 10 10000
FS662 600x600x35 ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥12500 2946 2356
FS822 600x600x35 ≥800 ≥3550 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600x35 ≥1000 ≥4450 ≥453 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x35 ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x35 ≥1500 ≥6660 ≥680 ≥780 ≥26690 ≥43000 6670 5560
FS2000 600x600x35 ≥2000 ≥8880 ≥906 ≥890 ≥31130 ≥58000 8800 8000

*Fireproof Class A
