XL-150 Height Series

H:Height=150mm
W:Width=from 150mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

  • XL-150

H:Height=150mm
W:Width=from 150mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

H:Height=150mm
W:Width=from 150mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

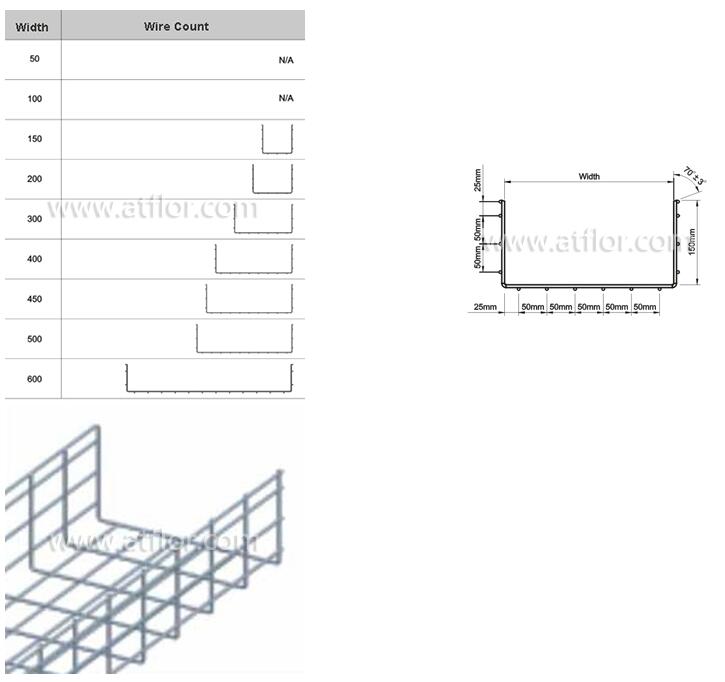

Specification

Item

Height(mm)

Width(mm)

Length(mm)

Dia(mm)

Weight(KG)

XL150-150

150

150

3000

5

6.43

XL150-200

150

200

3000

5

7.13

XL150-300

150

300

3000

5

9.47

XL150-400

150

400

3000

5

10.88

XL150-450

150

450

3000

5

11.58

XL150-500

150

500

3000

5

12.28

XL150-600

150

600

3000

5

13.69
