XL-75 Height Series

H:Height=75mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

  • XL-75

H:Height=75mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

H:Height=75mm
W:Width=from 100mm to 1000mm
L:Length=from300 to 3000mm
D:Diameter=from 3.5mm to 6.0mm
F:Surface finishing:

EZ:(Electro Zinc Plated ≥12μm)
HDG:(Hot Dipped Galvanized ≥60μm)
PC:(Powder Coated 60~100μm)
SS304(Acid washing)
SS316(Acid washing)
SS316L(Acid washing)

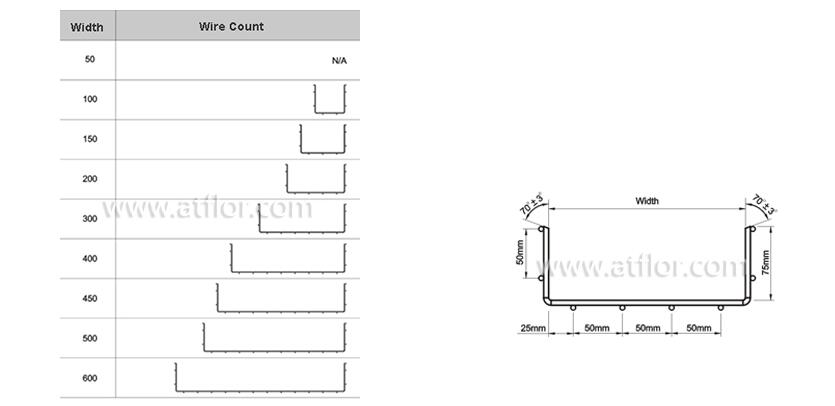

Specification

Item

Height(mm)

Width(mm)

Length(mm)

Dia(mm)

Weight(KG)

XL75-100

75

100

3000

5

4.08

XL75-150

75

150

3000

5

4.78

XL75-200

75

200

3000

5

5.49

XL75-300

75

300

3000

5

6.89

XL75-400

75

400

3000

5

8.30

XL75-450

75

450

3000

5

9.00

XL75-500

75

500

3000

5

9.71

XL75-600

75

600

3000

5

11.11
