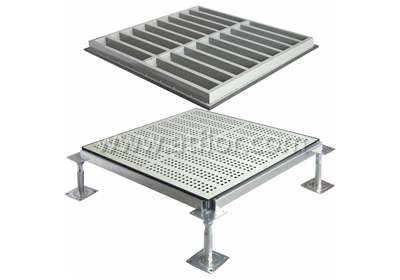

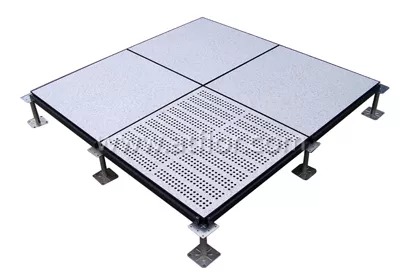

20% Ventilation Steel Air-flow Raised Floor

1.With wildly brand top tiles, such as PVC, HPL
2.Adjustable height for pedestal, assembly agility, large wire
3.High recycled, convenient removing, saving cost
4.Prevent static validly, fireproof, dustproof

  • 20% ventilation

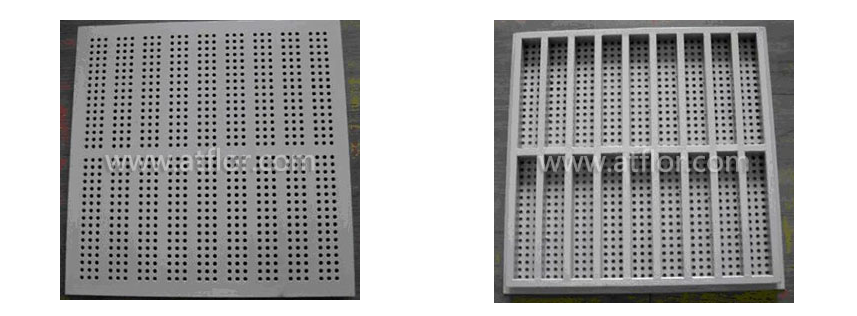

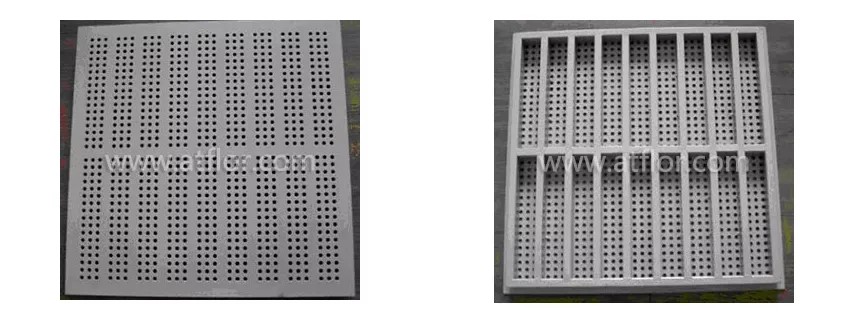

Full steel, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.

1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.16%~65% ventilation rate, satisfies different environmental requirements on purge.

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Technicial Specification

International

Size(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)

LB

N

KG

10 times

100000

times

FS440

600x600

A

≥440

≥1960

≥200

≥295

≥5880

≥9272

1958

1566

FS662

600x600

A

≥662

≥2950

≥301

≥445

≥8850

≥1250

2946

2356

FS800

600x600

A

≥800

≥3350

≥363

≥536

≥11250

≥16100

3560

2670

FS1000

600x600

A

≥1000

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600

A

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

Size :600*600mm

Thickness: 30/32/35/40mm

Material : all steel
