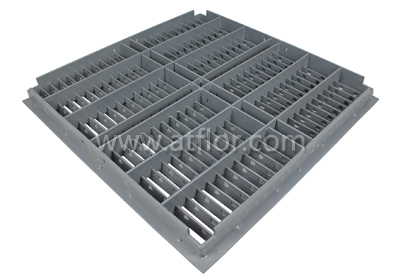

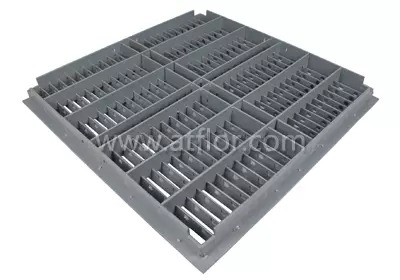

65% Ventilation Steel Air-flow Raised Floor

1.With wildly brand top tiles, such as PVC, HPL
2.Adjustable height for pedestal, assembly agility, large wire
3.High recycled, convenient removing, saving cost
4.Prevent static validly, fireproof, dustproof

  • 65% Ventilation

Full steel, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.

1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.16%~65% ventilation rate, satisfies different environmental requirements on purge;
5.Also called air-flow raised floor,ventilation raised floor,perforated raised floor.

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Technicial Specification

International

Size(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)

LB

N

KG

10 times

100000

times

FS1000

600x600

A

≥100

≥4550

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600

A

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600

A

≥1500

≥6660

≥680

≥1005

≥19980

≥34500

6675

5340

Size :600*600mm

Thickness: 50mm

Material : all steel

Note: suitable for 600*600*35mm steel raised floor system
