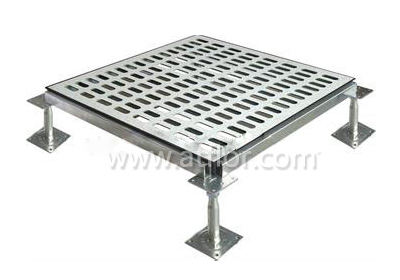

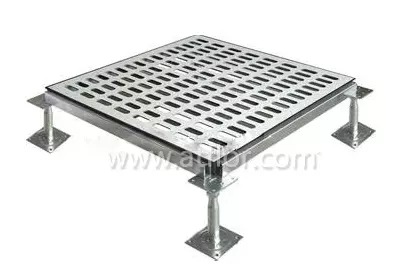

32% Ventilation Steel Air-flow Raised Floor - Buy Air-flow Raised Access Floor Product on ATFLOR: Your first time choice, our life time service.

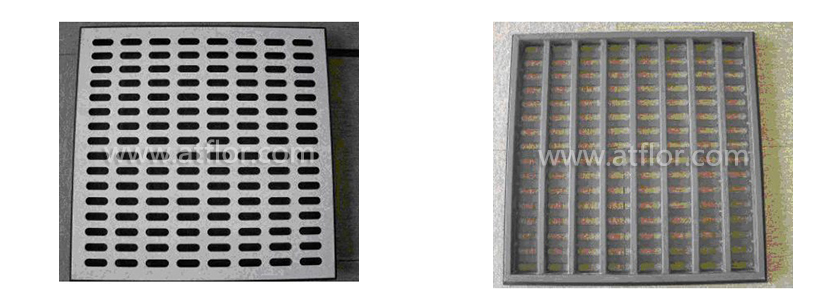

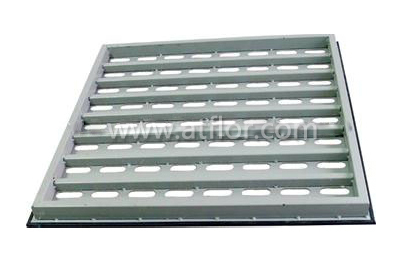

Full steel, surface punched panel which is SPCCID hard steel of Shanghai Bao steel, manual welding for the bottom square tube, origination domestic. Imported paint, conductive rim, pedestal, stringer are pressured forming with steel, lead screw could adjust height.

1.Prevent static validly; fireproof, dustproof;
2.Manual welding, high mechanical strength, strong bearing capacity, good shock-resistance;
3.Except for other function, possess ventilation function;
4.16%~65% ventilation rate, satisfies different environmental requirements on purge.

All manner of computer room, network service room monitor control center, electronic workshop, clean room, dauntlessness chamber etc and occasions which require on antistatic and air conditioning.

Technicial Specification

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	10 times	100000 times
FS440	600x600	A	≥440	≥1960	≥200	≥295	≥5880	≥9272	1958	1566
FS662	600x600	A	≥662	≥2950	≥301	≥445	≥8850	≥1250	2946	2356
FS800	600x600	A	≥800	≥3350	≥363	≥536	≥11250	≥16100	3560	2670
FS1000	600x600	A	≥1000	≥4550	≥450	≥670	≥13350	≥23000	4450	3560
FS1250	600x600	A	≥1250	≥5560	≥567	≥780	≥16680	≥33000	5560	4450

Size :600*600mm

Thickness: 30/32/35/40mm

Material : all steel
