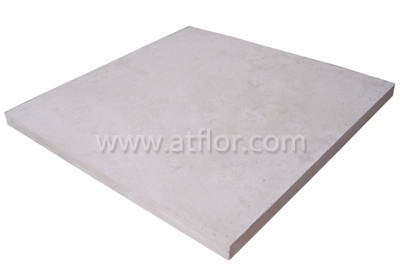

Calcium Sulphate Board

Premium natural CaSO4 1/2H2O,Original wood pulp, no bleaching,impurity and air odor, long fiber ,accurately proportion of different raw material.

Product Type : FS800 ~ FS1500

1. Environment friendly calcium sulphate board.
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof.
3. Outlet mating.
Elegant appearance for paving wildly brand top tiles. Being stable performance in humidity temperature.

1. Environment friendly calcium sulphate board.
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof.
3. Outlet mating.
Elegant appearance for paving wildly brand top tiles. Being stable performance in humidity temperature.

XL have researched the calcium sulphate for many years, the loading capacity of this floor from XL better than any other suppliers, and the purity of calcium sulphate in the panel more than 85% which has reached the international standard.

Calcium sulphate panel make the environment friendly plant's firbre as the reinforcement material, and then solidify the calcium sulphate crystals, and after the pulse pressing process done. has become the newest one of raised access floor, because the good furthers in environment friendly, fireproof, high loading capacity and flatness and so on.


Technicial Specification

InternationalSize(mm)Fire performanceConcentrated loadImpact load (N)Ultimate load (N)Uniform Load (N/㎡)Rolling load(N)
LBNKg10 Times10000 Times
FS800600x600A≥800≥3350≥363≥536≥11250≥1610035602670
FS1000600x600A≥1000≥4550≥450≥670≥13350≥2300044503560
FS1250600x600A≥1250≥5560≥567≥780≥16680≥3300055604450
FS1500600x600A≥1500≥6675≥670≥1005≥19892≥3450066755340

  *panel thickness available from 25mm to 38mm
