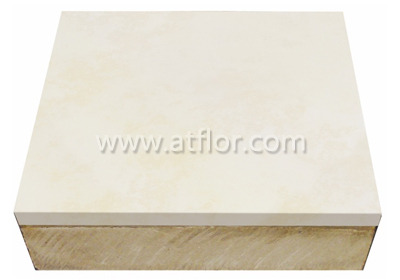

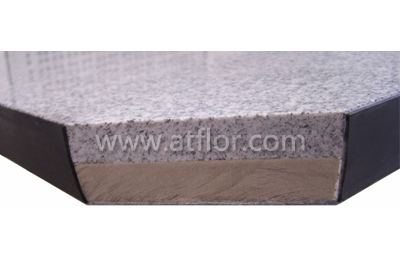

Ceramic(Granite) calcium sulphate raised access floor

1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,
electromagnetic shielding, environment friendly and innoxious;
2. Strong wearability, non-bubble, non-deguming;
3. Strong support frame, pressurization;
4. High grade, beautiful appearance, easy to fix, convenient for wires;
5. Recyclable, convenient removing, cost saving, long performance life

Product Type : FS800 ~ FS1500

1. Environment friendly calcium sulphate board
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
4. Outlet mating. Elegant appearance for paving wildly brand top tiles.
5. Being stable performance in humidity temperature

1. Panel-30mm thickness calcium sulphate board, PVC/ABS corvered four edges, steel/aluminium
on the bottom plate, wildly brand top tiles is PVC
2. Accessories-die casting steel structure pedestal plastic gasket on top, height could be
70mm--1500mm, with or without square tube stringer steady connect the system

Wide range of the application such as bank, military, high grade computer room top grade office, and occasions which required high loading capacity


Technicial Specification

InternationalSize(mm)Fire PerformanceConcentrated loadImpact load (N)Ultimated load (N)Uniform Load (N/m2)Rolling load(N)
LBNKG10 times100000 times
FS800600x600A≥800≥3350≥363≥536≥11250≥1610035602670
FS1000600x600A≥1000≥4550≥450≥670≥13350≥2300044503560
FS1250600x600A≥1250≥5560≥567≥780≥16680≥3300055604450
FS1500600x600A≥1500≥6675≥670≥1005≥19892≥3450066755340

* panel thickness available from 35mm to 48mm


Standard Pedestal SPEC

FFH(mm)tube iameter(mm)adjustment+(mm)adjustment-(mm)
≦600ф252525
700~900ф322525
1000~1500ф422525

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
