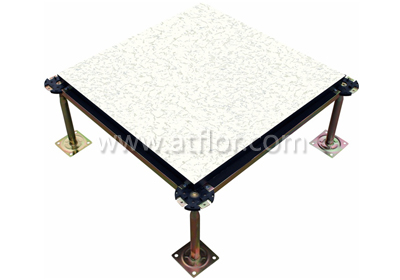

Calcium Sulphate Raised Access Floor system

1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,
electromagnetic shielding, environment friendly and innoxious;
2. Strong wearability, non-bubble, non-deguming;
3. Strong support frame, pressurization;
4. High grade, beautiful appearance, easy to fix, convenient for wires;
5. Recyclable, convenient removing, cost saving, long performance life

Product Type : FS800 ~ FS1500

1. Environment friendly calcium sulphate board
2. Anti-static, High dimensional precision, strong loading ability and shockproof,fireproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
4. Outlet mating. Elegant appearance for paving wildly brand top tiles.
5. Being stable performance in humidity temperature

1.panel- calcium sulphate board ,PVC/ABS corvered four edges,steel/aluminium on the bottom plate ,wildly brand top tiles could be carpet ,HPL PVC ,ceramic stone , or other tiles as you like

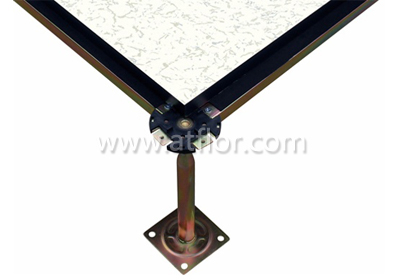

2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system

All kinds of computer room, network service room, monitoring center, electronic workshop, cleanroom, dustless chamber etc, 5A

class office, security union plaza, futures trading building etc


Type Technology parameter

International Size(mm) Fire Performance Concentrated load Impact load (N) Ultimated load (N) Uniform Load (N/m2) Rolling load(N)
LB N KG 10 times 100000 times
FS800 600x600 A ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600 A ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600 A ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340

*panel thickness available from 25mm to 38mm

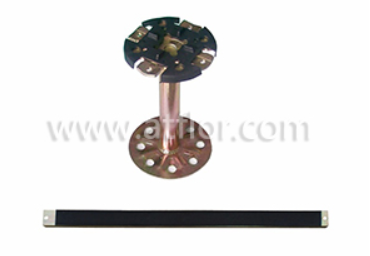

Standard Pedestal SPEC:

FFH(mm) tube diameter(mm) adjustment +(mm) adjustment –(mm)
≦600 ф25 25 25
700~900 ф32 25 25
1000~1500 ф42 25 25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
