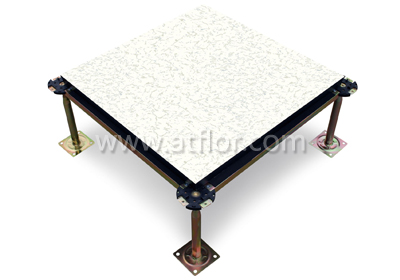

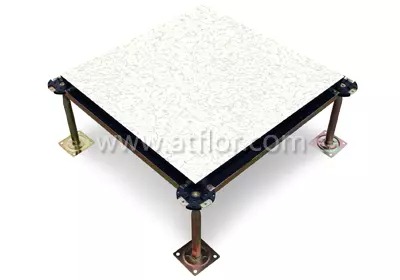

PVC coated calcium sulphate raised access floor

1. Prevent static validly; fireproof, antiskid, soundproof; dustproof,
electromagnetic shielding, environment friendly and innoxious;
2. Strong wearability, non-bubble, non-deguming;
3. Strong support frame, pressurization;
4. High grade, beautiful appearance, easy to fix, convenient for wires;
5. Recyclable, convenient removing, cost saving, long performance life

Product Type : FS800 ~ FS1500

1. Environment friendly calcium sulphate board
2. Anti-static, High dimensional precision, strong loading ability and shockproof, fireproof
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability.
4. Outlet mating. Elegant appearance for paving wildly brand top tiles.
5. Being stable performance in humidity temperature

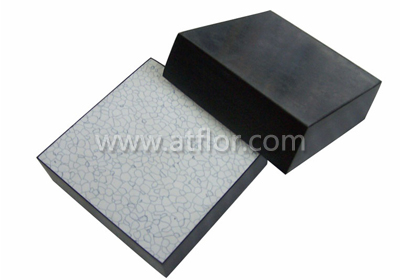

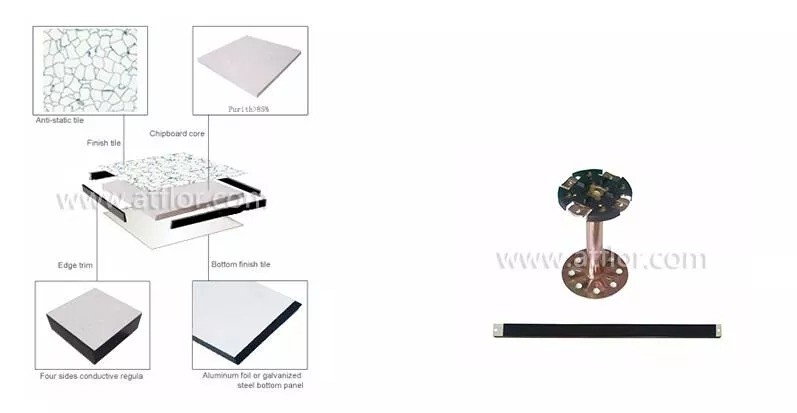

1. Panel-calcium sulphate board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles is PVC
2. Accessories-die casting steel structure pedestal plastic gasket on top, height could be
70mm--1500mm, with or without square tube stringer steady connect the system

Wide range of the application such as bank, military, high grade computer room top grade office, and occasions which required high loading capacity

Technicial Specification

International Type SIZE Concentrated  Load Impact  Load (N) Ultimate Load (N) Uniform Load (N/M2) Rolling  load (N)
LB N KG 10 times 10000 times
FS800 600*600 ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600*600 ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600*600 ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600*600 ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340

* panel thickness available from 25mm to 38mm


Standard Pedestal SPEC

FFH(mm) tube iameter(mm) adjustment+(mm) adjustment-(mm)
≦600 ф25 25 25
700~900 ф32 25 25
1000~1500 ф42 25 25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
