HPL Coated Wood Core Raised Access Floor

1.High density particle board, PVC/ABS edge trim, sound proof.
2.High dimensional precision, strong loading ability and shockproof.
3.Outlet mating. Elegant appearance for paving wildly brand top tiles.
4.light weight, convenient removing, saving labor.

Product Type : FS440~FS1000

1.High density particle board, PVC/ABS edge trim, sound proof.
2.High dimensional precision, strong loading ability and shockproof.
3.Outlet mating. Elegant appearance for paving wildly brand top tiles.
4.light weight, convenient removing, saving labor.

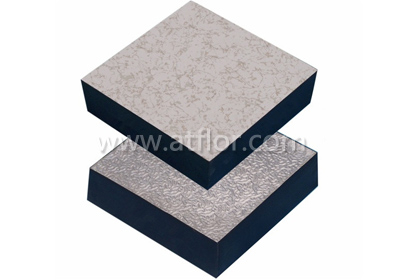

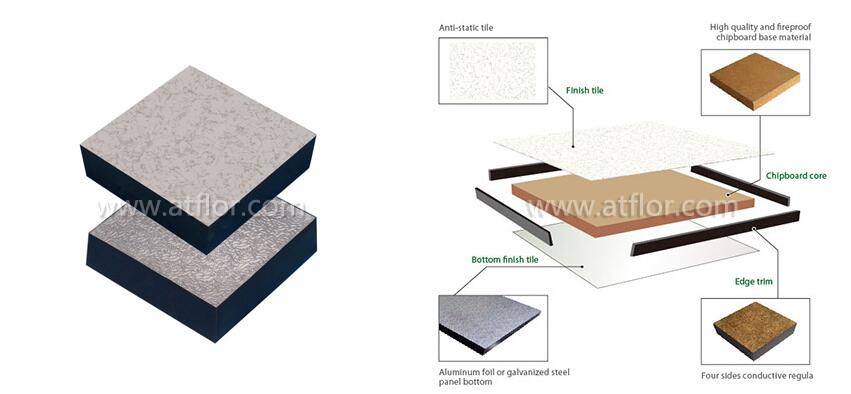

1.panel- 30/38mm thickness particle board, HPL/ABS corvered four edges,steel/aluminium on the bottom plate, wildly brand top tiles is HPL.

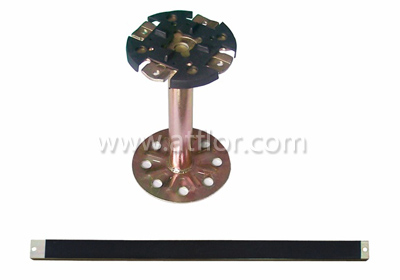

2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system

Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office

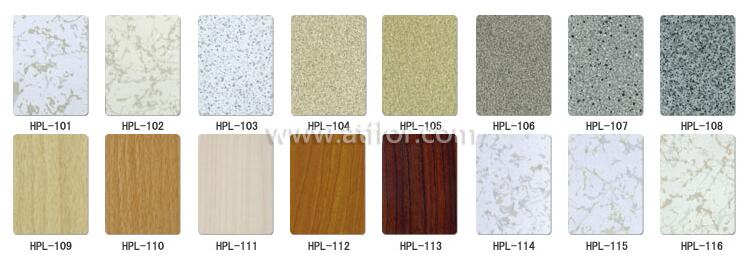

We have many HPL tile  colors to  choose from!

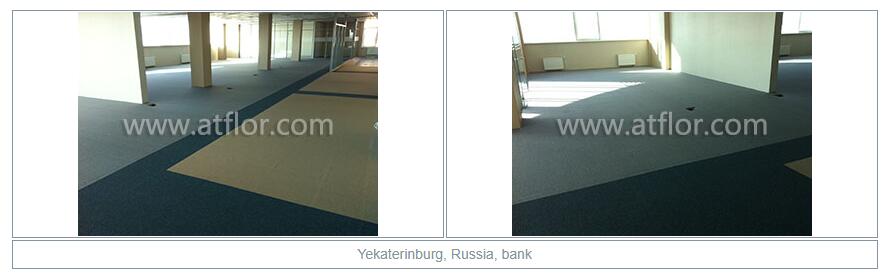

Case

Type Technology parameter

International Size(mm) Fire Performance Concentrated load Impact load (N) Ultimated load (N) Uniform Load (N/m2) Rolling load(N)
LB N KG 10 times 100000 times
FS440 600x600x32 B1 ≥440 ≥1960 ≥200 ≥295 ≥5880 ≥9720 1958 1566
FS662 600x600x40 B1 ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥12500 2946 2356
FS800 600x600x40 B1 ≥800 ≥3560 ≥363 ≥536 ≥10680 ≥16100 3560 2670
FS1000 600x600x40 B1 ≥1000 ≥4450 ≥450 ≥670 ≥13350 ≥23000 4450 3560


Standard Pedestal SPEC

FFH(mm) tub diameter(mm) adjustment +(mm) adjustment -(mm)
≦600 ф25 25 25
700~900 ф32 25 25
1000~1500 ф42 25 25


Other height could be customized.
Standard Stringer SPEC: 535x20x30mm
