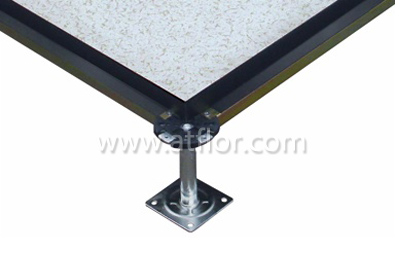

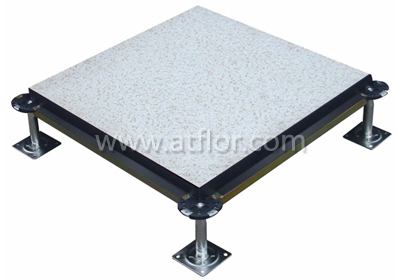

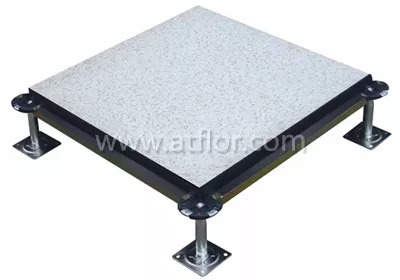

Wood Core Raised Access Floor System - Buy Raised Floor Product on ATFLOR: Your first time choice, our life time service.

1.High density particle board,PVC/ABS edge trim, sound proof
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.Light weight, high loading capacity, excellent raised flooring in 21th

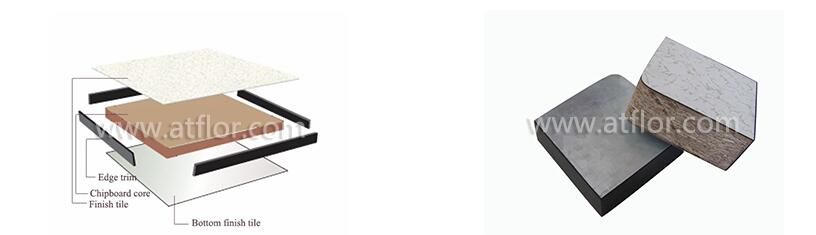

1.Panel- 30/38mm thickness particle board, PVC/ABS corvered four edges, steel/aluminium on the bottom plate, wildly brand top tiles could be carpet, HPL PVC, steel plate, aluminium foil or other tiles as you like

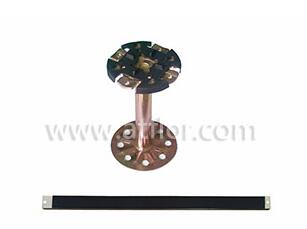

2.Accessories -die casting steel structure pedestal plastic gasket on top, height could be 70mm ---1500mm, with or without square tube stringer steady connect the system

Wide range of the application, all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office Type Technology parameter

Type Technology parameter

International	Size(mm)	Fire Performance	Concentrated load			Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	Rolling load(N)
International	Size(mm)	Fire Performance	LB	N	KG	Impact load (N)	Ultimated load (N)	Uniform Load (N/m2)	10 times	100000 times
FS440	600x600x32	B1	≥440	≥1960	≥200	≥295	≥5880	≥9720	1958	1566
FS662	600x600x40	B1	≥662	≥2950	≥301	≥445	≥8850	≥12500	2946	2356
FS800	600x600x40	B1	≥800	≥3560	≥363	≥536	≥10680	≥16100	3560	2670
FS1000	600x600x40	B1	≥1000	≥4450	≥450	≥670	≥13350	≥23000	4450	3560

Standard Pedestal SPEC

FFH(mm)	tube diameter(mm)	adjustment +(mm)	adjustment -(mm)
≦600	ф25	25	25
700~900	ф32	25	25
1000~1500	ф42	25	25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm
