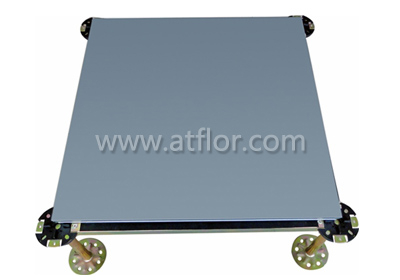

Steel Encased Wood Core Raised Access Floor

1.Full galvanized steel encased the wood core, very good sealing
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.light weight, high loading capacity, excellent raised flooring in 21th
5.High recycled,convenient removing,saving cost,long performance life

Product Type : FS662-FS1500

1.Full galvanized steel encased the wood core, very good sealing
2.High dimensional precision, strong loading ability and shockproof
3.Adjustable height for pedestal, assembly agility, large wire
4.light weight, high loading capacity, excellent raised flooring in 21th
5.High recycled, convenient removing, saving cost, long performance life

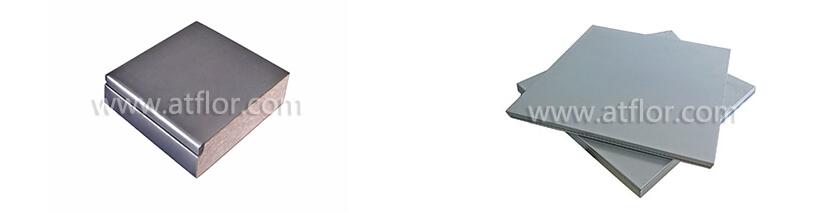

1.panel-Galvanized steel plate encased the wood core in sx faces ,steel sealed edge ,with or without coner lock hole in four corner ,wildly brand top tiles could be carpet ,HPL PVC tiles or other tiles as you like

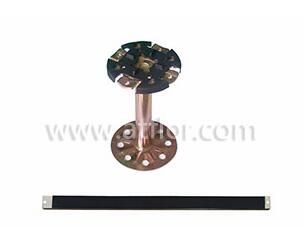

2.Accessories -die casting steel structure pedestal plastic gasket on top ,height could be 70mm ---1500mm , with or without square tube stringer steady connect the system

Wide range of the application all kinds of computerroom, network service engine room, control room, montoring cabin, top grade office.

Type Technology parameter

International

Size(mm)

Fire

Performance

Concentrated load

Impact load

(N)

Ultimated load

(N)

Uniform

Load

(N/m2)

Rolling load(N)

LB

N

KG

10 times

100000

times

FS662

600x600x32

A

≥662

≥2950

≥301

≥445

≥8850

≥12500

2946

2356

FS800

600x600x32

A

≥800

≥3560

≥363

≥536

≥10680

≥16100

3560

2670

FS1000

600x600x32

A

≥1000

≥4450

≥450

≥670

≥13350

≥23000

4450

3560

FS1250

600x600x32

A

≥1250

≥5560

≥567

≥780

≥16680

≥33000

5560

4450

FS1500

600x600x32

A

≥1500

≥6660

≥680

≥1005

≥19980

≥34500

6675

5340


Standard Pedestal SPEC

FFH(mm) tube diameter(mm) adjustment +(mm) adjustment -(mm)

≦600

ф25

25

25

700~900

ф32

25

25

1000~1500

ф42

25

25

Other height could be customized.

Standard Stringer SPEC: 535x20x30mm

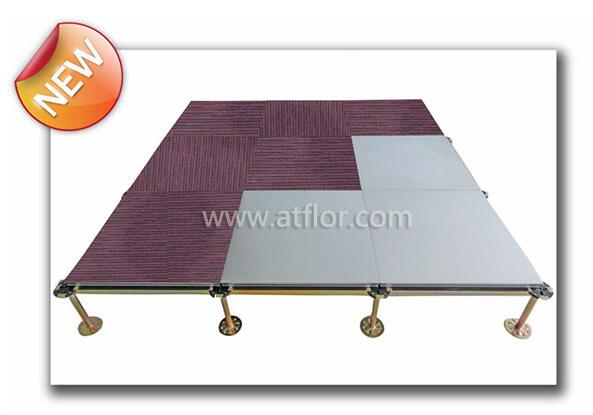

New product:Steel Encased Wood Core Raised Access Floor+magnetic floor
