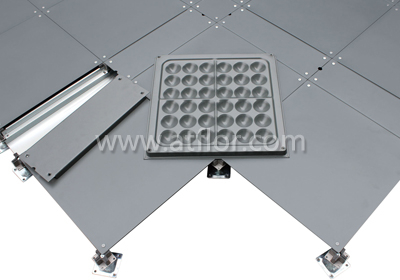

500mm Trunking Bare Steel Raised Access Floor System

1.Trunk aside by the panel,very low system;

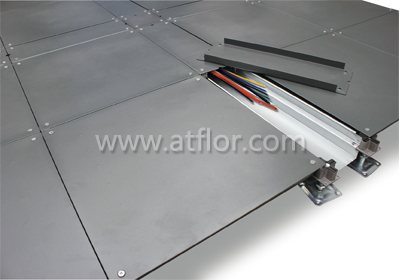

2.Cables and wires goes in the trunk; Large trunk space for cables and wires;
3.Easy to arrange and fix the cables and wires;

Product Type : FS440 ~ FS1000
Availability:

1. Easy for relocating cable management.
2. Convenient for connecting wire at any point without cutting floor.
3. Suitable for all kinds of plug socket terminals.
4. Trunkings can be applied at any units according to the volume of cable and wire.
5. Main components: panel, trunk over plate, corner cover plate.
6. Optional accessories: electrical outlet, trunk bottom plate, corner bottom plate, outlet.
7. Available height: 60mm--300mm.

1. Easy for relocating cable management.
2. Convenient for connecting wire at any point without cutting floor.
3. Suitable for all kinds of plug socket terminals.
4. Trunkings can be applied at any units according to the volume of cable and wire.
5. Main components: panel, trunk over plate, corner cover plate.
6. Optional accessories: electrical outlet, trunk bottom plate, corner bottom plate, outlet.
7. Available height: 60mm--300mm.

5A class office building, computer room and occasions which require overhead and large wires.

Even eligible for remaking surface for the wires in old office building.


Technicial Specification

InternationalSize(mm)Fire performanceConcentrated loadImpact load (N)Ultimate load (N)Uniform Load (N/㎡)Rolling load(N)
LBNKg10 Times10000 Times
FS440500x500x28A≥440≥1960≥200≥295≥5880≥927219581566
FS662500x500x28A≥662≥2950≥301≥445≥8850≥125029462356
FS800500x500x28A≥800≥3350≥363≥536≥11250≥1610035602670
FS1000500x500x28A≥1000≥4550≥450≥670≥13350≥2300044503560
