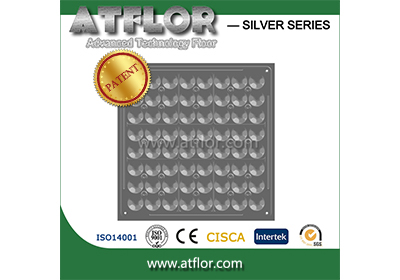

Silver New Bare Finished Steel Raised Access Floor

1. A Simpler System Design
2. Higher Load Capacity
3. More Appealing Outline
4. A more flexible System

Product Type : FS800~FS2000

1. Steel material
Shanghai baogang hard cold rolled steel
2. Appearance and dimension
Diamond back design ,elegant appearance ,many times reshape, high dimensional precision.
3. Concentrated load
Own to wider edge with rib,”#”back strengthening rib and salient point structure, more loading than national standards.
4. Anti-corrosion ,antirust ,wear proof
imported paint , anti-corrosion ,antirust ,high wearing
5. Cement infilled
Advanced cement formula, free or cinder ,using the advanced technology infilled ,guarantee cement full and uniform .
6. Glue and edge trim
imported glue ,rolling paste tile ,regular paste with 502 strong glue ,difficult to drop.
7. Mechanical property
Advanced multipoint spot welder ,uniform bonding point strong structural capacity between upper plate and bottom plate
8. Service life
15-20years.
9. Brand identification
Printing English ”ATFLOR” on steel panel for customer identification.

1. A Simpler System Design
2. Higher Load Capacity
3. More Appealing Outline
4. A more flexible System

Wide range of the application such as 5 class office, Security Union Plaza, Futures Trading Building, and the place demand cabling and wiring, and the aging building floor's reform


Technical Data

International Size(mm) Fire performance Concentrated load Impact load (N) Ultimate load (N) Uniform Load (N/㎡) Rolling load(N)
LB N Kg 10 Times 10000 Times
FS800 600x600x35 A ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600x35 A ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x35 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450
FS1500 600x600x35 A ≥1500 ≥6675 ≥670 ≥1005 ≥19892 ≥34500 6675 5340
FS2000 600x600x35 A ≥2000 ≥8900 ≥906 ≥1340 ≥26700 ≥46000 8900 7120

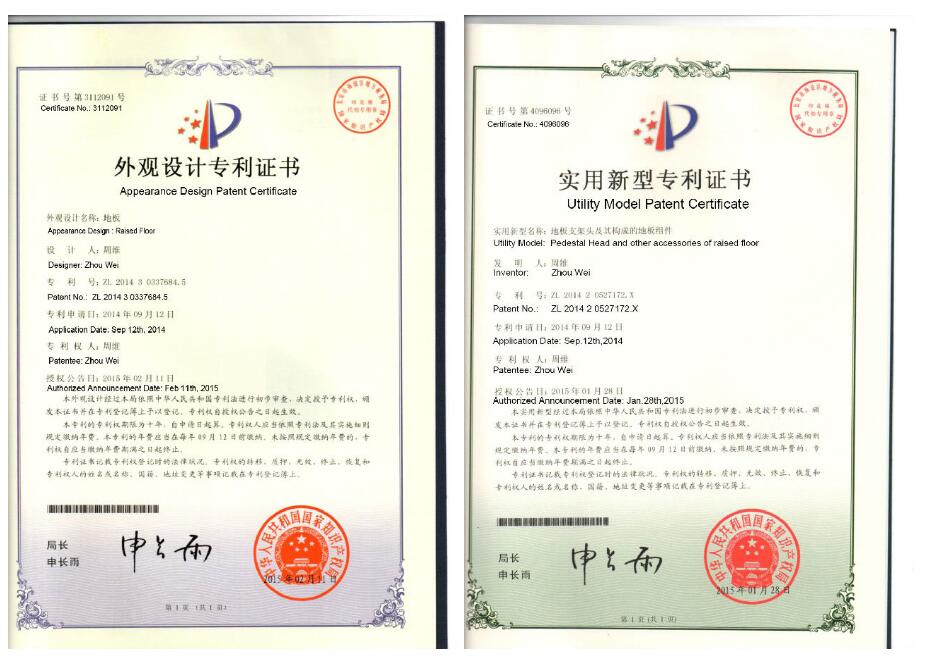

Patent certificate
