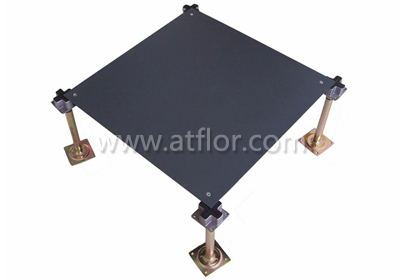

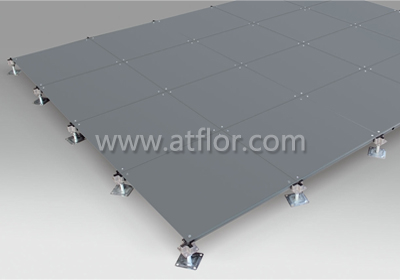

600mm Bare Finish Steel Raised Access Floor System

1.Easy and fast installation;
2.Strong loading capacity;
3.Low cost but high quality;
4.Large under space for cabling and wiring;

Product Type : FS440~FS1250
Availability:

1.Fireproof class A, moistureproof, dustrpoof, corrosion prevention and shockproof
2.High dimensional precision, strong loadability
3.Adjustable height for pedestal, assembly agility
4.Outlet mating trunking at will. Elegant appearance for paving wildly brand top tiles
5.High recycled, convenient removing, saving cost, long performance life

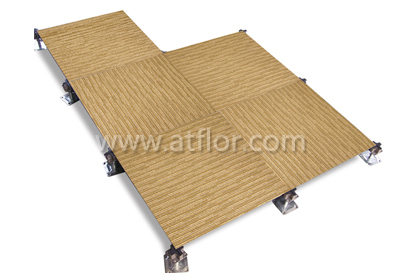

1.panel-Cementitious infill steel welded steel sheel, corner lock hole in four corners, top tiles could be carpet, PVC tiles or other tiles as you like
2.pedestal-die casting cross aluminium top, cross rubber gasket on top, steel structure as base, height could be 50mm ---1000mm
3.sharp top strews lock the panel coner and pedestal

Wide range of the application such as 5 class office Security Union Plaza ,Futures Trading Building, and the place demand cabling and wiring . And the aging building floor's reform


Technicial Specification

International Size(mm) Fire performance Concentrated load Impact load (N) Ultimate load (N) Uniform Load (N/㎡) Rolling load(N)
LB N Kg 10 Times 10000 Times
FS440 600x600x34 A ≥440 ≥1960 ≥200 ≥295 ≥5880 ≥9272 1958 1566
FS662 600x600x34 A ≥662 ≥2950 ≥301 ≥445 ≥8850 ≥1250 2946 2356
FS800 600x600x34 A ≥800 ≥3350 ≥363 ≥536 ≥11250 ≥16100 3560 2670
FS1000 600x600x34 A ≥1000 ≥4550 ≥450 ≥670 ≥13350 ≥23000 4450 3560
FS1250 600x600x34 A ≥1250 ≥5560 ≥567 ≥780 ≥16680 ≥33000 5560 4450

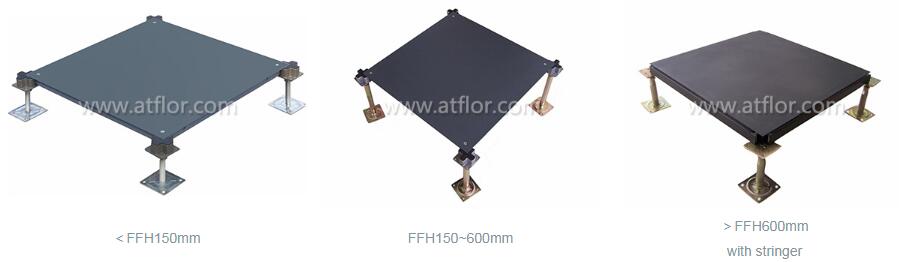

Standard Support Specification

FFH (mm) Tube Diameter (mm) Adjustment + (mm) Adjustment - (mm)
<150 M18 10 20
150~600 M25 25 25
700~900 M32 25 25
1000~1500 M45 25 25
