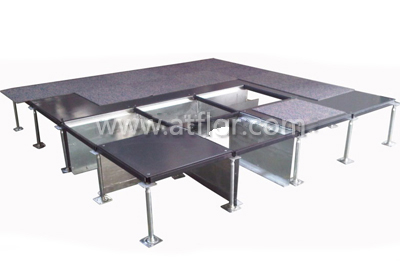

Bolted Stringer steel raised floor system

1.Bare finish steel raised floor system with stringer;
2.Makes the system more stable and safe;
3.Optional carpet on the top;
4.Usually for the system which is above 30cm;
5.Perfect sealing property for under-floor air-condition system;
6.Corner lock holes are optional for panel applicable for kinds of covering tiles, carpet, PVC, solid wood floor...
Product Type : FS440~FS2000

1. Fireproof class A, moistureproof, dustrpoof, corrosion prevention.
2. High dimensional precision, strong loadability and shockproof.
3. Adjustable height for pedestal, assembly agility, large wire, good exchangeability
4. Outlet mating. Elegant appearance for paving wildly brand top tiles.
5. Solve traditional troubles of wire aged, short circuit etc caused by cement, brick, wood floor embedded the wires in advanced.
6. High recycled, convenient removing, saving cost, long performance life.
7. Perfect sealing property for under-floor air-condition system.
8. Corner lock holes are optional for panel applicable for kinds of covering tiles, carpet, PVC, solid wood floor...

1. panel-Cementitious infill welded die casing steel sheel, with or without corner lock hole in four corners, top tiles could be carpet, PVC tiles or other tiles as you like

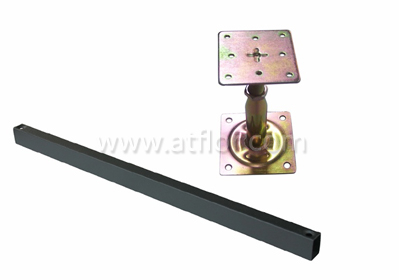

2. pedestal-flat top steel structure pedestal, height could be 80mm--1500mm

Wide range of the application such as 5 class office

Security Union Plaza ,Futures Trading Building, and the place demand cabling and wiring. And the aging building floor's reform


Technicial Specification

InternationalSize(mm)Fire performanceConcentrated loadImpact load (N)Ultimate load (N)Uniform Load (N/㎡)Rolling load(N)
LBNKg10 Times10000 Times
FS440600x600x34A≥440≥1960≥200≥295≥5880≥927219581566
FS662600x600x34A≥662≥2950≥301≥445≥8850≥125029462356
FS800600x600x34A≥800≥3350≥363≥536≥11250≥1610035602670
FS1000600x600x34A≥1000≥4550≥450≥670≥13350≥2300044503560
FS1250600x600x34A≥1250≥5560≥567≥780≥16680≥3300055604450
FS1500600x600x34A≥1500≥6675≥670≥1005≥19892≥3450066755340
FS2000600x600x34A≥2000≥8900≥906≥1340≥26700≥4600089008000


Standard Pedestal SPEC

FFH (mm)Tube Diameter (mm)Adjustment ± (mm)
≦600ф2525
700~900ф3225
1000~1500ф4525

Standard Stringer SPEC: 570x21x32mm
